+91 79 26750952  HE DyeStuff |
Product | Yellow HE6G | Yellow HE4G | Yellow HE4R | G. Yellow HER | Orange HER | Orange HE2R | Red HE3B | Red HE7B | Red HE8B | Green HE4B | Turq. Blue HA | Blue HEGN 125% | Blue HERD | Navy Blue HER | Navy Blue HE2R | |
| C. 1. No. | Yellow - 135 | Yellow - 105 | Yellow - 84 | Yellow - 84 A | Orange - 84 | Own Shade | Red - 120 | Red - 141 | Red - 152A | Green - 19A | Blue - 71 A | Blue - 198 | Blue - 160 | Blue - 171 | Blue - 172 | ||
| 1% Shade | |||||||||||||||||
| 4% Shade | |||||||||||||||||
| Solubility in DM Water (Grams/Lit.) (At 30°C Temperature) |
100 | 25 | 70 | 70 | 30 | 25 | 120 | 150 | 60 | 60 | 80 | 60 | 100 | 100 | 60 | ||
| Solubility with 60 G/L Salt (Grams/Lit.) (At 30°C Temperature) |
20 | 5 | 50 | 45 | 10 | 10 | 60 | 100 | 35 | 35 | 30 | 40 | 60 | 50 | 40 | ||
| Light Fastness (1-8 Gray Scale Rating) (ISO-105-B02) |
0.5% Depth | 4-5 | 4-5 | 5 | 4-5 | 3 | 3-4 | 4 | 3-4 | 3 | 3-4 | 4-5 | 4-5 | 4-5 | 3-4 | 3 | |
| 3.0% Depth | 5-6 | 5-6 | 5-6 | 5-6 | 4 | 4 | 5 | 4-5 | 4-5 | 5 | 5-6 | 6 | 5-6 | 4 | 4-5 | ||
| Washing Fastness (ISO-105-C03 Method) (60°C - 30') (5 g/l Soap + 2 g/I Soda MLR 1:50 |
1% Depth | Effect | 4-5 | 5 | 5 | 5 | 4-5 | 4-5 | 5 | 5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Stain | 5 | 5 | 5 | 4-5 | 4-5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 | ||
| 4% Depth | Effect | 4-5 R |
4-5 R |
4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4-5 | 3-4 | 4-5 | 4-5 | 4-5 | 4-5 | |
| Stain | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4 | 4 | 4 | 3-4 | 4 | 3 | 4 | 4 | 4 | 3-4 | ||
| Rubbing Fastness (ISO -105-X12 Method) (10 Strokes-To & Fro) (Crock meter) |
1% Depth | Dry | 5 | 5 | 5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 5 | 4-5 | 4-5 |
| Wet | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4 | 4-5 | 4-5 | 4 | 4 | 4 | 4 | 4-5 | 4-5 | 4 | ||
| 4% Shade- | Dry | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4-5 | 4-5 | 4-5 | 4 | 4 | 5 | 4 | 3 | |
| Wet | 4 | 4 | 4 | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 | 3 | 3-4 | 3-4 | 3-4 | 2-3 | ||
| Perspiration Fastness Acidic - pH - .5 MLR 1:50 (ISO-105-E04) (37° C Temp - 4 hrs) |
4% Shade- | Effect | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 3-4 | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 |
| Stain | 4 | 4-5 | 4 | 4 | 4-5 | 4-5 | 4-5 | 4-5 | 4 | 4 | 3-4 | 4 | 4-5 | 4-5 | 4-5 | ||
| Perspiration Fastness Alkaline - pH 8.0 MLR 1:50 (ISO-105-E04) (37° C Temp - 4 hrs) |
4% Shade- | Effect | 4-5 | 4-5 R |
4-5 | 4-5 | 4 | 3-4 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 |
| Stain | 4 | 4-5 | 4 | 4 | 4 | 4 | 4-5 | 4-5 | 4 | 4 | 3-4 | 4 | 4 | 4-5 | 4-5 | ||
| Chlorinated Water Fastness (ISO-105-E03) MLR 1:100 (20 ppm available chlorine) (27° C Temp -1 hr) |
4% Shade | Effect | 3-4 R |
2-3 | 3-4 | 3-4 | 4 R |
3 | 3-4 | 3-4 | 3-4 | 2-3 | 3-4 | 2-3 | 2-3 | 3 | 2-3 |
| Stain | 4 | 4 | 4-5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | 4-5 | ||
| Depth Of Shade | Salt Ash Reqirement (Grams/Lit.) | Soda Ash Reqirement (Grams/Lit.) | |
| Unmercerised Cotton | Mercerised Cotton or Rayon | ||
|---|---|---|---|
| Up to 0.10% | 10 | 5 | 10 |
| 0.11% - 0.30% | 20 | 10 | 10 |
| 0.31% - 0.50% | 30 | 20 | 10 |
| 0.51% - 1.00% | 45 | 30 | 15 |
| 1.01% - 2.00% | 60 | 40 | 15 |
| 2.01% - 4.00% | 70 | 55 | 20 |
| Above 4% | 90 | 65 | 20 |

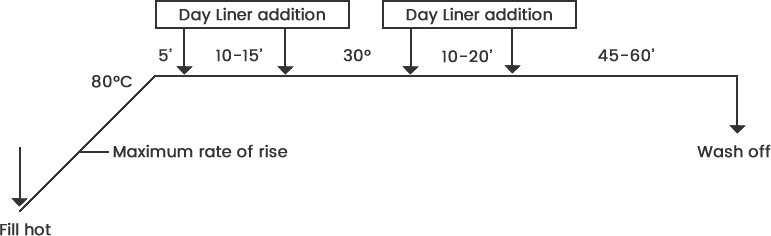

Process Sequance Chart to produce pale shades, medium shade or heavy shade are mentioned on next flaps.

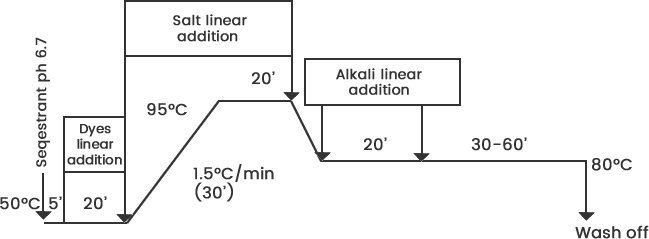

This process is recommended for non-circulating liquor machinery and it is suitable for all depths of shade.

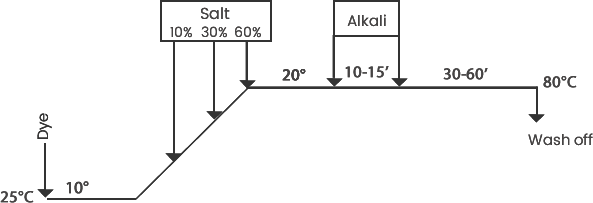

This process is recommended for machines Circulation and it is suitable for all depths of shade.

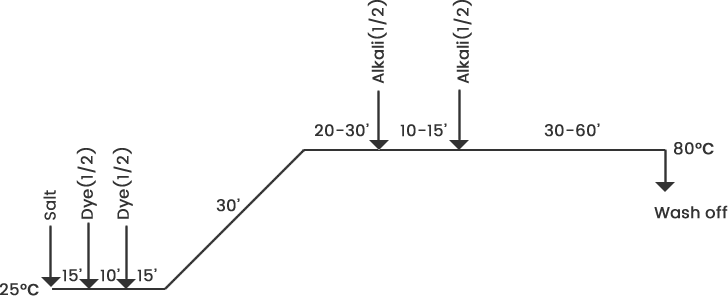

This method is recommended for machines with microprocessor controlled addition system for dying pale shades(less then 0.5% depth) and for all shades on merecerised cotton & viscose packages.
This method is recommended for machines with microprocessor controlled addition system for medium to heavy depths (greater then 0.5% depth) on unmercerised cotton
